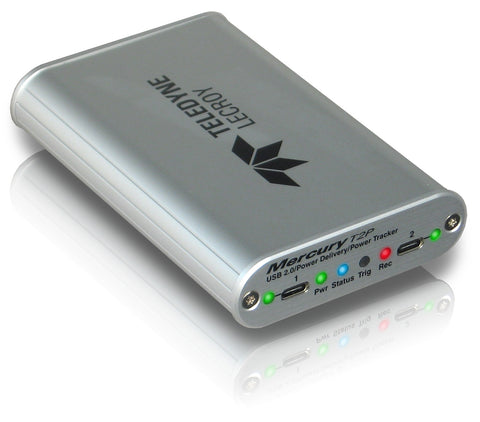

USB-TMSP2-M03-X - Mercury T2P Standard Analyzer
- Supports USB Power Delivery 2.0 & 3.0 – Captures and decodes all Configuration Channel (CC) events
- CATC Trace Analysis Software - Faster interpretation and debug of USB traffic
- Portable and Convenient - Bus Powered analyzer works with any Windows-based PC
- AutoDetect USB 2.0 Speeds - Automatically detects low, full, and high-speed connections
- Power Tracker™ - Graphical view of VBUS and CC voltages synchronized to PD protocol messages
- Up to 512 MByte Recording Capacity – Extend capture windows further with real-time filtering and data truncation
- Spool-to-Disk Mode - Record for hours or even days with spool-to-disk capture
- Non-intrusive High Impedance Probe - Preserves real-world signal and timing conditions for devices-under-test
- Advanced Triggering - Isolates important traffic, specific errors or data patterns
- Extensive Decodes - Mass Storage, Bluetooth HCI, Hub, PTP/Still Image, Printer, Human Interface Devices (HID), Audio and Communication Device Class (CDC)
- Hardware Filtering - Automatically exclude non-essential and redundant packets from the trace
- Intelligent Reporting - Quickly identify and track error rates, abnormal bus or timing conditions
- Sophisticated Viewing – Provides complete Packet, Transaction and Transfer layer views of USB 2.0 and PD protocol
- IN STOCK: 8/8/2023
